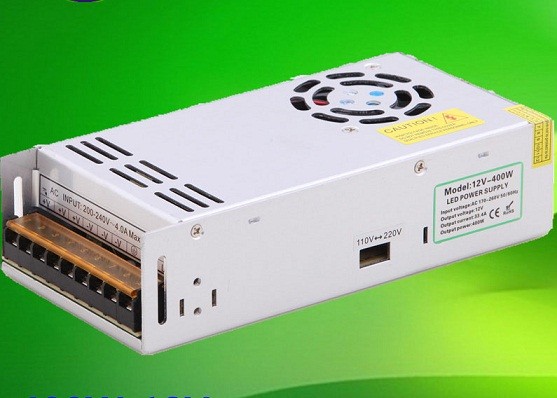

400W LED Driver Controller Outdoor , 12V / 24V LED Driver 2 Year Warranty

400W LED Driver Controller Outdoor , 12V / 24V LED Driver 2 Year Warranty

    • 400W LED Driver Controller Outdoor , 12V / 24V LED Driver 2 Year Warranty
    • 400W LED Driver Controller Outdoor , 12V / 24V LED Driver 2 Year Warranty
  • 400W LED Driver Controller Outdoor , 12V / 24V LED Driver 2 Year Warranty

    Product Details:

    Place of Origin: China
    Brand Name: LEDCORP
    Certification: ISO9001 , CE , RoHS
    Model Number: LC-400-12

    Payment & Shipping Terms:

    Minimum Order Quantity: 30pcs
    Price: Negotiation
    Packaging Details: Folding Boxes Inside Shipping Carton
    Delivery Time: 15 working days
    Payment Terms: T/T , PayPal
    Supply Ability: 10,000pcs per month
    Contact Now
    Detailed Product Description
    Input Voltage: AC100-277V Output Voltage: 12V
    Power: 400W IP Rating: IP20
    Certificate: CE / RoHS Warranty: 2 Years

    400W LED Driver Controller Outdoor , 12V / 24V LED Driver 2 Year Warranty

    Product Features:

    • IP20 design for indoor installations
    • Protections: short circuit, overload, over temperature
    • Cooling by free air convection
    • 100% full load burn-in test
    • Suitable for LED lighting
    • Product through CE, RoHS certification
    • 2 years warranty

    Application:

    • Outdoor or indoor Led driver for signage, channel letter, decoration
    • Outdoor or indoor led driver for led modules, led strips, led panel lights, with constant voltage requirement.


    Technical specification:


    Part. No

    LCP-400-12



    OUTPUT

    DC voltage

    12V



    Related current

    33.3A



    Current range

    0-33.3A



    Rated power

    400W



    Ripple&Noise(max)

    150mA



    Voltage tolerance

    ±0.1%



    INPUT

    Setup time

    200ms/220VAC

    Hold up time

    20mS/220VAC

    Voltage range

    170-250VAc

    Frequency range

    50-60HZ

    Power factor

    PF>0.55/220VAC

    Efficiency

    82%



    Input current

    4.7A/170V

    Input current

    3.0A/260V

    PROTECTION

    Short circuit

    Recovers automatically after condition is removed

    Overload

    Overload protected@115-140% above rating

    Over temperature

    Shut down o/p voltage, re-power on to recover

    ENVIRONMENT

    Working Temp

    —30℃to+50℃

    Working Humidity

    20-90% RH non-condensing

    Storage Temp

    —40℃to+80℃, 10-99%RH

    SAFETY & EMC

    Safety standards

    CE Mark (LVD), IP20

    Withstand voltage

    I/P-O/P:1.5KVAC I/P-GND:1.5VAC

    EMC test standards

    EN55015:2006; EN61547:1995+A1:2000;       EN61000-3-2:2006;EN61000-3-3:1995+a2;     EN61347-1:2001;EN61347-2-13:2006


    Dimension: 200*100*50mm



    Weight: 0.7kg/pcs


    Packing details:


    Product Name

    HS code

    Packaging unit

    Pieces per box

    Dimensions LxWxH

    Gross weight

    Volume

    Power supply

    94054090

    Shipping carton box

    30pcs

    45*20*26cm

     21KG

    0.0234cbm


     400W LED Driver Controller Outdoor , 12V / 24V LED Driver 2 Year Warranty
