150W LED Power Driver Controller Waterproof , 12V LED Driver For Signage

150W LED Power Driver Controller Waterproof , 12V LED Driver For Signage

    • 150W LED Power Driver Controller Waterproof , 12V LED Driver For Signage
    • 150W LED Power Driver Controller Waterproof , 12V LED Driver For Signage
  • 150W LED Power Driver Controller Waterproof , 12V LED Driver For Signage

    Product Details:

    Place of Origin: China
    Brand Name: LEDCORP
    Certification: ISO9001 , CE , RoHS
    Model Number: LCP-150-12/24

    Payment & Shipping Terms:

    Minimum Order Quantity: 30pcs
    Price: Negotiation
    Packaging Details: Folding Boxes Inside Shipping Carton
    Delivery Time: 15 working days
    Payment Terms: T/T , PayPal
    Supply Ability: 10,000pcs per month
    Contact Now
    Detailed Product Description
    Input Voltage: AC100-277V Output Voltage: 12V / 24V
    Power: 150W IP Rating: IP65
    Certificate: CE / RoHS Warranty: 2 Years

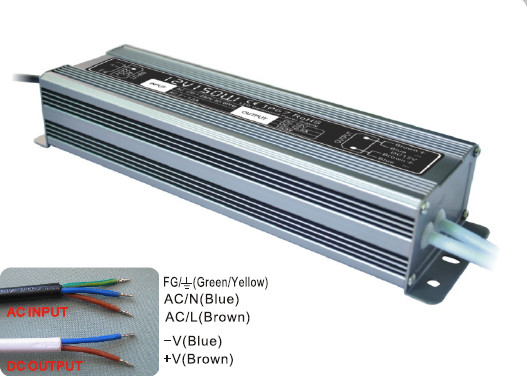

    150W LED Power Driver Controller Waterproof , 12V LED Driver For Signage


    Product Features:

    • IP67 design for indoor or outdoor installations
    • Protections: short circuit, overload, over temperature
    • Cooling by free air convection
    • 100% full load burn-in test
    • Suitable for LED lighting
    • Product through CE, RoHS certification
    • 2 years warranty

    Application:

    • Outdoor or indoor Led driver for signage, channel letter, decoration
    • Outdoor or indoor led driver for led modules, led strips, led panel lights, with constant voltage requirement.

    Dimension:

    150W LED Power Driver Controller Waterproof , 12V LED Driver For Signage

    Technical specification:


    Part. No

    LCP-150-12

    LCP-150-24

    OUTPUT

    DC voltage

    12V

    24V

    Related current

    12.5A

    6.25A

    Current range

    0-12.5A

    0-6.25A

    Rated power

    150W

    150W

    Ripple&Noise(max)

    150mA

    150mA

    Voltage tolerance

    ±2%

    ±1%

    INPUT

    Setup time

    80ms/220VAC

    Hold up time

    60mS/220VAC

    Voltage range

    170-250VAc

    Frequency range

    50-60HZ

    Power factor

    PF>0.55/220VAC

    Efficiency

    82%

    84%

    AC current

    0.62A/220VAC

    Inrush current

    Cold start 50A/220VAC

    PROTECTION

    Short circuit

    Recovers automatically after condition is removed

    Overload

    Overload protected@115-140% above rating

    Over temperature

    Shut down o/p voltage, re-power on to recover

    ENVIRONMENT

    Working Temp

    —30℃to+50℃

    Working Humidity

    20-90% RH non-condensing

    Storage Temp

    —40℃to+80℃, 10-99%RH

    SAFETY & EMC

    Safety standards

    CE Mark (LVD), IP67

    Withstand voltage

    I/P-O/P:1.5KVAC I/P-GND:1.5VAC

    EMC test standards

    EN55015:2006; EN61547:1995+A1:2000;       EN61000-3-2:2006;EN61000-3-3:1995+a2;     EN61347-1:2001;EN61347-2-13:2006


    Packing details:

    Product Name

    HS code

    Size(mm) Weight

    Packaging unit

    Pieces per box

    Dimensions LxWxH

    Gross weight

    Volume

    Power supply

    94054090

    240*68.5*44 1.2kg/pcs

    Shipping carton box

    15pcs

    34*27*28cm

     18KG

    0.0234cbm
