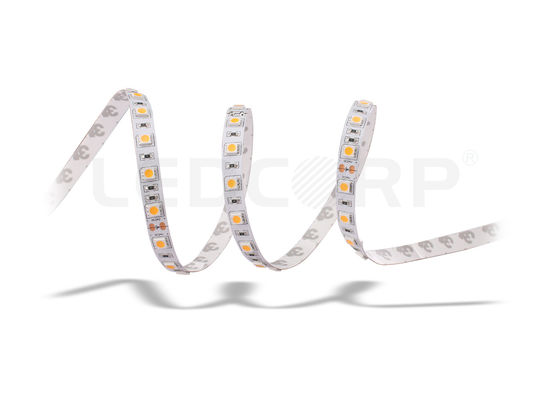

5050 60LED/m 300LED/roll 14.4w/m 24V 3M Flexible SMD LED Strip Dimmable LED Lighting Strips

5050 60LED/m 300LED/roll 14.4w/m 24V 3M Flexible SMD LED Strip Dimmable LED Lighting Strips

    • 5050 60LED/m 300LED/roll 14.4w/m 24V 3M Flexible SMD LED Strip Dimmable LED Lighting Strips
    • 5050 60LED/m 300LED/roll 14.4w/m 24V 3M Flexible SMD LED Strip Dimmable LED Lighting Strips
    • 5050 60LED/m 300LED/roll 14.4w/m 24V 3M Flexible SMD LED Strip Dimmable LED Lighting Strips
    • 5050 60LED/m 300LED/roll 14.4w/m 24V 3M Flexible SMD LED Strip Dimmable LED Lighting Strips
  • 5050 60LED/m 300LED/roll 14.4w/m 24V 3M Flexible SMD LED Strip Dimmable LED Lighting Strips

    Product Details:

    Place of Origin: China
    Brand Name: LEDCORP
    Certification: ISO9001,UL/CE/RoHS
    Model Number: LC60-N5050-W/WW

    Payment & Shipping Terms:

    Minimum Order Quantity: 250M
    Price: Welcome to your inquiry
    Packaging Details: 12kg/ctn,500*350*250mm
    Delivery Time: 15 days
    Payment Terms: T/T,PayPal
    Supply Ability: 500,000m/month
    Contact Now
    Detailed Product Description
    Led: 5050 Qty: 60 LEDs/m
    Voltage: 12V/24V Power: 14.4 W/m
    CRI: 85 PCB: 10mm
    CCT: 2400K-6500K Packing: 5 M/roll
    Angle: 120° Efficacy: 90 Lm/w
    IP: IP20-68 Lumen: 1200 Lm/m
    SDCM: 4 SDCM Lifespan: >35000 Hrs
    Certification: UL/CE/RoHS Warranty: 3-5 Yrs

    5050 60LED 14.4W per meter ---> 12/24V 10mm            5050 60LED/m 300LED/roll 14.4w/m 24V 3M Flexible SMD LED Strip Dimmable LED Lighting Strips  5050 60.pdf

    5050 60LED/m 300LED/roll 14.4w/m 24V 3M Flexible SMD LED Strip Dimmable LED Lighting Strips

    5050 60LED/m 300LED/roll 14.4w/m 24V 3M Flexible SMD LED Strip Dimmable LED Lighting Strips

    Product advantages:

    • Color Consistency, only one bin
    • High Efficacy, 90-165lm/w
    • High CRI, 80+,90+,95+
    • Color purity: we use quality chip, phosphor golden wires and copper holder, make the SDCM<4
    • Long Lifespan: >35000 Hrs
    • No dark and uninterrupted Led strip
    • High brightness, low decay, low power consumption, LM-80 Tested
    • Be able to give soul space, and increase the dynamics of the space, making the space brighter.

    5050 60LED/m 300LED/roll 14.4w/m 24V 3M Flexible SMD LED Strip Dimmable LED Lighting Strips

    5050 60LED/m 300LED/roll 14.4w/m 24V 3M Flexible SMD LED Strip Dimmable LED Lighting Strips

    5050 60LED/m 300LED/roll 14.4w/m 24V 3M Flexible SMD LED Strip Dimmable LED Lighting Strips

    5050 60LED/m 300LED/roll 14.4w/m 24V 3M Flexible SMD LED Strip Dimmable LED Lighting Strips

    5050 60LED/m 300LED/roll 14.4w/m 24V 3M Flexible SMD LED Strip Dimmable LED Lighting Strips

    Application area:

    • Backlight or edge lighting for signage
    • Cove lighting
    • Architectural lights for canopy, archway
    • DIY lights for home use
    • Path and contour marking
    • Decorative lights for house, event, show, exhibition, hotel



    Technical details:



    Details

    Item

    Unit

    Specification

    Physical data

    LED type

    SMD

    5050SMD

    LED Qty /meter

    LED/m

    60

    Dimensions

    mm

    10*2*5000 (W*H*L)

    Type of protection

    IP

    IP20/IP65/IP66/IP67/IP68

    Working temperature

    °C

    0-40°C

    Electrical data

    Power

    w/m

    14.4

    Voltage

    VDC

    12 (24 option)

    Optical data

    Luminous flux

    lm/m

    1180-1242

    Beam angle

    degrees

    120

    Light color



    Warm white/Natural white/White

    Color BINs



    1 BIN

    Color temperature

    K

    Warm white:2400/2700-3000

    Natural white:4000-4500

    White: 5000-5500/6000-6500

    Color rendering index

    CRI

    80-90

    Order reference

    HS code

    94054090

    Part. no

    LC60-N5050-w/ww/nw-IP20-12/24

    LC60-W5050-w/ww/nw-IP65-12/24

    LC60-W5050-w/ww/nw-IP68-12/24



    Dimension:

    5050 60LED/m 300LED/roll 14.4w/m 24V 3M Flexible SMD LED Strip Dimmable LED Lighting Strips



    Installation:

    5050 60LED/m 300LED/roll 14.4w/m 24V 3M Flexible SMD LED Strip Dimmable LED Lighting Strips



    5050 60LED/m 300LED/roll 14.4w/m 24V 3M Flexible SMD LED Strip Dimmable LED Lighting Strips

     Packing details:

    Part No.

    HS code

    Packaging unit

    meters per box

    reels per box

    Dimensions(mm) LxWxH

    Gross weight

    Volume(cbm)

    LC60-N5050-XX-IP20

    94054090

    One Pack

    5m

    1reel

    150*150*12

    0.11kg

    0.00027

    Shipping carton box

    500m

    100reel

    500*350*250

    12kg

    0.04375

    LC60-W5050-XX-IP65/IP68

    94054090

    One Pack

    5m

    1reel

    220*220*13

    0.22kg

    0.00063

    Shipping carton box

    250m

    50reel

    500*350*250

    12kg

    0.04375





    5050 60LED/m 300LED/roll 14.4w/m 24V 3M Flexible SMD LED Strip Dimmable LED Lighting Strips

    5050 60LED/m 300LED/roll 14.4w/m 24V 3M Flexible SMD LED Strip Dimmable LED Lighting Strips



    5050 60LED/m 300LED/roll 14.4w/m 24V 3M Flexible SMD LED Strip Dimmable LED Lighting Strips



    5050 60LED/m 300LED/roll 14.4w/m 24V 3M Flexible SMD LED Strip Dimmable LED Lighting Strips
