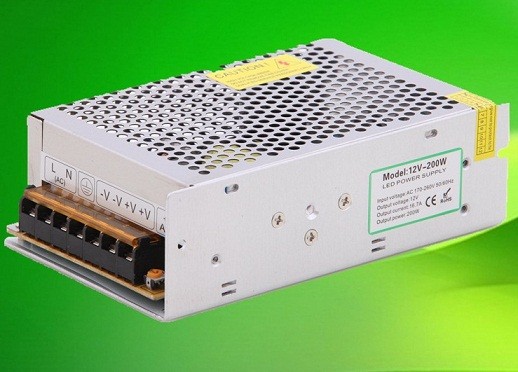

0.5kg 200W LED Driver Controller Overload / Over Temperature Protections

Place of Origin China
Brand Name LEDCORP
Certification ISO9001 , CE , RoHS
Model Number LC-200-12/24
Minimum Order Quantity 30pcs
Price Negotiation
Packaging Details Folding Boxes Inside Shipping Carton
Delivery Time 15 working days
Payment Terms T/T , PayPal
Supply Ability 10,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Input Voltage AC100-277V Output Voltage 12V / 24V
Power 200W IP Rating IP20
Certificate CE / RoHS Warranty 2 Years
High Light

LED driver power supply

,

LED power driver

Leave a Message
Product Description

0.5kg 200W LED Driver Controller Overload / Over Temperature Protections

Product Features:

  • IP20 design for indoor installations
  • Protections: short circuit, overload, over temperature
  • Cooling by free air convection
  • 100% full load burn-in test
  • Suitable for LED lighting
  • Product through CE, RoHS certification
  • 2 years warranty



Application:

  • Outdoor or indoor Led driver for signage, channel letter, decoration
  • Outdoor or indoor led driver for led modules, led strips, led panel lights, with constant voltage requirement.


Technical specification:


Part. No

LCP-200-12

LCP-200-24

OUTPUT

DC voltage

12V

24V

Related current

16.7A

8.3A

Current range

0-16.7A

0-8.3A

Rated power

200W

200W

Ripple&Noise(max)

150mA

200mA

Voltage tolerance

±0.1%

±0.1%

INPUT

Setup time

200ms/220VAC

Hold up time

20mS/220VAC

Voltage range

170-250VAc

Frequency range

50-60HZ

Power factor

PF>0.55/220VAC

Efficiency

81%

81%

AC current



Inrush current



PROTECTION

Short circuit

Recovers automatically after condition is removed

Overload

Overload protected@115-140% above rating

Over temperature

Shut down o/p voltage, re-power on to recover

ENVIRONMENT

Working Temp

—30℃to+50℃

Working Humidity

20-90% RH non-condensing

Storage Temp

—40℃to+80℃, 10-99%RH

SAFETY & EMC

Safety standards

CE Mark (LVD), IP20

Withstand voltage

I/P-O/P:1.5KVAC I/P-GND:1.5VAC

EMC test standards

EN55015:2006; EN61547:1995+A1:2000;       EN61000-3-2:2006;EN61000-3-3:1995+a2;     EN61347-1:2001;EN61347-2-13:2006


Dimension:160*98*50mm



Weight: 0.5kg



Packing details:


Product Name

HS code

Packaging unit

Pieces per box

Dimensions LxWxH

Gross weight

Volume

Power supply

94054090

Shipping carton box

30pcs

45*20*26cm

 15.3KG

0.0234cbm
