24 Volt 120W LED Driver Controller With Short Circuit / Overload Protection
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xInput Voltage | AC100-277V | Output Voltage | 12V / 24V |
---|---|---|---|
Power | 120W | IP Rating | IP65 |
Certificate | CE / RoHS | Warranty | 2 Years |
High Light | LED power driver,LED light driver |

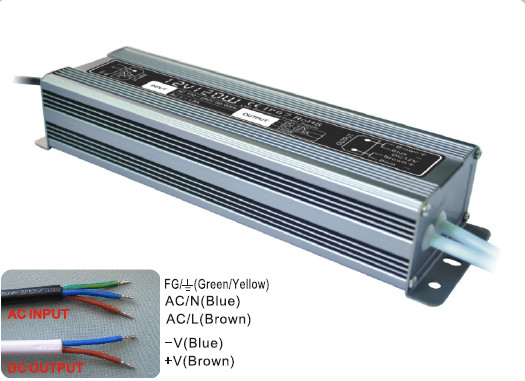

24 Volt LED Driver Controller With Short Circuit / Overload Protection
Product Features:
- IP67 design for indoor or outdoor installations
- Protections: short circuit, overload, over temperature
- Cooling by free air convection
- 100% full load burn-in test
- Suitable for LED lighting
- Product through CE, RoHS certification
- 2 years warranty
Application:
- Outdoor or indoor Led driver for signage, channel letter, decoration
- Outdoor or indoor led driver for led modules, led strips, led panel lights, with constant voltage requirement.
Dimension:
Technical specification:
Part. No | LCP-120-12 | LCP-120-24 |
OUTPUT | ||
DC voltage | 12V | 24V |
Related current | 10A | 5A |
Current range | 0-10A | 0-5A |
Rated power | 120W | 120W |
Ripple&Noise(max) | 150mA | 150mA |
Voltage tolerance | ±2% | ±1% |
INPUT | ||
Setup time | 80ms/220VAC | |
Hold up time | 60mS/220VAC | |
Voltage range | 170-250VAc | |
Frequency range | 50-60HZ | |
Power factor | PF>0.55/220VAC | |
Efficiency | 82% | 84% |
AC current | 1.3A/220VAC | |
Inrush current | Cold start 50A/220VAC | |
PROTECTION | ||
Short circuit | Recovers automatically after condition is removed | |
Overload | Overload protected@115-140% above rating | |
Over temperature | Shut down o/p voltage, re-power on to recover | |
ENVIRONMENT | ||
Working Temp | —30℃to+50℃ | |
Working Humidity | 20-90% RH non-condensing | |
Storage Temp | —40℃to+80℃, 10-99%RH | |
SAFETY & EMC | ||
Safety standards | CE Mark (LVD), IP67 | |
Withstand voltage | I/P-O/P:1.5KVAC I/P-GND:1.5VAC | |
EMC test standards | EN55015:2006; EN61547:1995+A1:2000; EN61000-3-2:2006;EN61000-3-3:1995+a2; EN61347-1:2001;EN61347-2-13:2006 |
Packing details:
Product Name | HS code | Size(mm) | Weight | Packaging unit | Pieces per box | Dimensions LxWxH | Gross weight | Volume |
Power supply | 94054090 | 240*68.5*44 | 1.2kg/pcs | Shipping carton box | 15pcs | 34*27*28cm | 18KG | 0.0234cbm |
