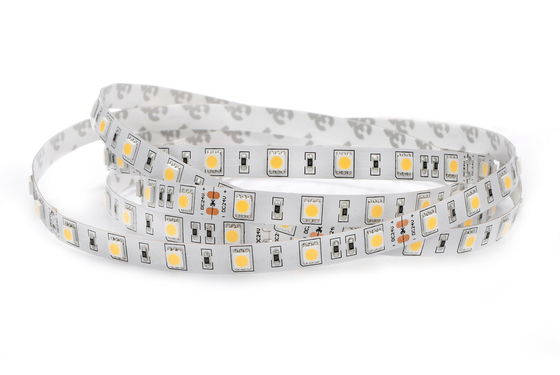

5050 48LEDs/m 240LEDs/roll 10.4w/m Super Bright 5M SMD LED Strip Lighting Decorative 2400K - 6500K
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xLed | 5050 | Qty | 48 LEDs/m |
---|---|---|---|
Voltage | 12/24V | Power | 10.4 W/m |
CRI | 85 | PCB | 10mm |
CCT | 2400K-6500K | Packing | 5 M/roll |
Angle | 120° | Eifficacy | 90 Lm/w |
IP | IP20-68 | Lumen | 990 Lm/m |
SDCM | 4 SDCM | Lifespan | >35000 Hrs |
Certification | UL/CE/RoHS | Warranty | 3-5 Yrs |
High Light | 5050 LED strip lights,SMD 5050 LED strip |
5M 48LEDs/m 5050 SMD LED Strip Lighting Decorative 5050 48.pdf
Product advantages:
- Color Consistency, only one bin
- High Efficacy, 90-165lm/w
- High CRI, 80+,90+,95+
- Color purity: we use quality chip, phosphor golden wires and copper holder, make the SDCM<4
- Long Lifespan: >35000 Hrs
- No dark and uninterrupted Led strip
- High brightness, low decay, low power consumption, LM-80 Tested
- Be able to give soul space, and increase the dynamics of the space, making the space brighter.
Application area:
- Backlight or edge lighting for signage
- Cove lighting
- Architectural lights for canopy, archway
- DIY lights for home use
- Path and contour marking
- Decorative lights for house, event, show, exhibition, hotel
Technical details:
Details |
Item |
Unit |
Specification |
Physical data |
LED type |
SMD |
5050SMD |
LED Qty /meter |
LED/m |
48 |
|
Dimensions |
mm |
10*2*5000 (W*H*L) |
|
Type of protection |
IP |
IP20/IP65/IP66/IP67/IP68 |
|
Working temperature |
°C |
0-40°C |
|
Electrical data |
Power |
w/m |
10.4 |
Voltage |
VDC |
12 (24 option) |
|
Optical data |
Luminous flux |
lm/m |
1180-1242 |
Beam angle |
degrees |
120 |
|
Light color |
|
Warm white/Natural white/White |
|
Color BINs |
|
1 BIN |
|
Color temperature |
K |
Warm white:2400/2700-3000 |
|
Natural white:4000-4500 |
|||
White: 5000-5500/6000-6500 |
|||
Color rendering index |
CRI |
80-90 |
|
Order reference |
HS code |
94054090 |
|
Part. no |
LC48-N5050-w/ww/nw-IP20-12/24 |
||
LC48-W5050-w/ww/nw-IP65-12/24 |
|||
LC48-W5050-w/ww/nw-IP68-12/24 |
Dimension:
Installation:
Packing details:
Part No. |
HS code |
Packaging unit |
meters per box |
reels per box |
Dimensions(mm) LxWxH |
Gross weight |
Volume(cbm) |
LC48-N5050-XX-IP20 |
94054090 |
One Pack |
5m |
1reel |
150*150*12 |
0.11kg |
0.00027 |
Shipping carton box |
500m |
100reel |
500*350*250 |
12kg |
0.04375 |
||
LC48-W5050-XX-IP65/IP68 |
94054090 |
One Pack |
5m |
1reel |
220*220*13 |
0.22kg |
0.00063 |
Shipping carton box |
250m |
50reel |
500*350*250 |
12kg |
0.04375 |
