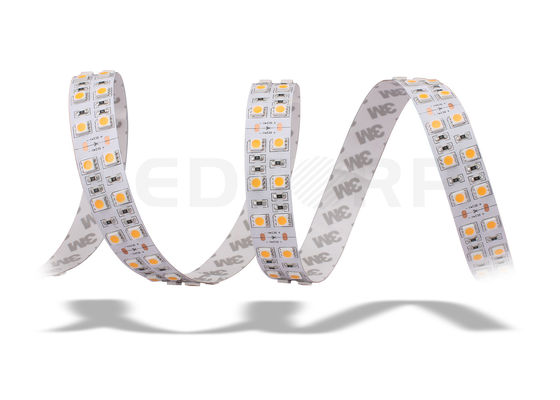

5050 120 LEDs/m 600LEDs/roll 28.8w/m High Brightness LED Strip 24 Volt Double Line

Place of Origin CHINA
Brand Name LEDCORP
Certification ISO9001, UL/CE/RoHS
Model Number LC120-N5050-W/WW
Minimum Order Quantity 250M
Price Welcome to your inquiry
Packaging Details 500*350*250mm
Delivery Time 2 weeks
Payment Terms PayPal, T/T
Supply Ability 500,000m per month
Product Details
Led 5050 Qty 120 LEDs/m
Voltage 24V Power 28.8 W/m
CRI 85 PCB 20mm/28mm
CCT 2400K - 6500K Packing 5 M/roll
Angle 120° Eifficacy 90-100 Lm/m
IP IP20-65 Lumen 2400 Lm/m
SDCM 4 SDCM Lifespan >35000 Hrs
Certification UL/CE/RoHS Warranty 3-5 Yrs
High Light

LED strip light 5050

,

SMD 5050 LED strip

Leave a Message
Product Description

120 LEDs/m SMD 5050 LED Strip 24 Volt Double Line 28.8w/m 5050 120 LEDs/m 600LEDs/roll 28.8w/m High Brightness LED Strip 24 Volt Double Line 0 5050 120 Dual.pdf

5050 120 LEDs/m 600LEDs/roll 28.8w/m High Brightness LED Strip 24 Volt Double Line 1

5050 120 LEDs/m 600LEDs/roll 28.8w/m High Brightness LED Strip 24 Volt Double Line 2

Product advantages:

  • Color Consistency, only one bin
  • High Efficacy, 90-165lm/w
  • High CRI, 80+,90+,95+
  • Color purity: we use quality chip, phosphor golden wires and copper holder, make the SDCM<4
  • Long Lifespan: >35000 Hrs
  • No dark and uninterrupted Led strip
  • High brightness, low decay, low power consumption, LM-80 Tested
  • Be able to give soul space, and increase the dynamics of the space, making the space brighter.



Technical details:

Details

Item

Unit

Specification

Physical data

LED type

SMD

5050SMD

LED Qty /meter

LED/m

120

Dimensions

mm

15*2*5000 (W*H*L)

Type of protection

IP

IP20 / IP65

Working temperature

°C

0-40°C

Electrical data

Power

w/m

28.8

Voltage

VDC

12 (24 option)

Optical data

Luminous flux

Lm/m

2360 - 2484

Beam angle

degrees

120

Light color



Warm white/Natural white/White

Color BINs



1 BIN

Color temperature

K

Warm white:2400/2700-3000

Natural white:4000-4500

White: 5000-5500/6000-6500

Color rendering index

CRI

80-90

Order reference

HS code

94054090

Part. no

LC120-N5050-w/ww/nw-IP20-24

LC120-W5050-w/ww/nw-IP65-24



5050 120 LEDs/m 600LEDs/roll 28.8w/m High Brightness LED Strip 24 Volt Double Line 3

5050 120 LEDs/m 600LEDs/roll 28.8w/m High Brightness LED Strip 24 Volt Double Line 4

5050 120 LEDs/m 600LEDs/roll 28.8w/m High Brightness LED Strip 24 Volt Double Line 5

5050 120 LEDs/m 600LEDs/roll 28.8w/m High Brightness LED Strip 24 Volt Double Line 6



Dimension:

5050 120 LEDs/m 600LEDs/roll 28.8w/m High Brightness LED Strip 24 Volt Double Line 7



Installation:

5050 120 LEDs/m 600LEDs/roll 28.8w/m High Brightness LED Strip 24 Volt Double Line 8



Packing details:



Part No.

HS code

Packaging unit

meters per box

reels per box

Dimensions(mm) LxWxH

Gross weight

Volume(cbm)

LC120-N5050-XX-IP20

94054090

One Pack

5m

1reel

150*150*12

0.11kg

0.00027

Shipping carton box

250m

50reel

500*350*250

12kg

0.04375

LC120-W5050-XX-IP65

94054090

One Pack

5m

1reel

220*220*13

0.22kg

0.00063

Shipping carton box

100m

20reel

500*350*250

12kg

0.04375
