LEDCORP® Neon Flex Side Bend Pro/CCT/RGB/Digital/DMX/360° with Simple and Stylish Appearance

Place of Origin CHINA
Brand Name LEDCORP®
Certification ISO9001,CE,UL,TUV, RoHS
Model Number LC-S2020
Minimum Order Quantity 250M/50Rolls
Price Negotiate according to order qty
Packaging Details 50x40x25CM
Delivery Time 15 working days
Payment Terms T/T , PayPal
Supply Ability 500,000mters per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Luminous Surface Side Bend Cross Section 20x20mm
Min Bending Diameter 200mm Voltage 24V
Waterproof IP67 Consistency One Bin
Protection UV Protection CRI >90
Lifespan >35000 Hrs Warranty 3 Years
Storage Temperature -25℃~60℃ Shipping 30 Rolls/CTN
You can tick the products you need and communicate with us in the message board.
Part No. Voltage CRI/Ra Cutting Length(mm) Power(W/m) CCT(K) Lumen(lm/m) Max Length(m)
LC-S2020-W21 DC24V 90+ 50mm 10 2100K 380 17M(CC)
LC-S2020-W24 DC24V 90+ 50mm 10 2400K 450 17M(CC)
LC-S2020-W27 DC24V 90+ 50mm 10 2700K 460 17M(CC)
LC-S2020-W30 DC24V 90+ 50mm 10 3000K 430 17M(CC)
LC-S2020-W35 DC24V 90+ 50mm 10 3500K 480 17M(CC)
LC-S2020-W40 DC24V 90+ 50mm 10 4000K 470 17M(CC)
LC-S2020-W50 DC24V 90+ 50mm 10 5000K 470 17M(CC)
LC-S2020-W65 DC24V 90+ 50mm 10 6500K 460 17M(CC)
LC-S2020-R/G/B/Y/P DC24V 50mm 10 R/G/B/Y/P 100-350 17M(CC)
LC-S2020-CCT DC24V 90+ 50mm 10 3000K-6500K 490 5M(CV)
LC-S2020-RGB DC24V 62.5mm 10 RGB 210 5M(CV)
LC-S2020-RGBW DC24V 80+ 62.5mm 10 RGB + 2700K/3000K/4000K/6500K 280-310 5M(CV)
Leave a Message
Part No. Voltage CRI/Ra Cutting Length(mm) Power(W/m) CCT(K) Lumen(lm/m) Max Length(m)
Product Description

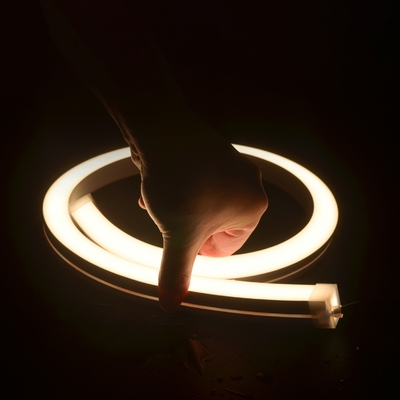

 Product Picture:



LEDCORP® Neon Flex Side Bend Pro/CCT/RGB/Digital/DMX/360° with Simple and Stylish Appearance 0



 Dimension:



LEDCORP® Neon Flex Side Bend Pro/CCT/RGB/Digital/DMX/360° with Simple and Stylish Appearance 1





 Product advantages:



 High light transmittance, environmental protection grade silicone material.

 Integrated extrusion molding process.

 Unique optial light distribution structure design.

 Uniform lighting surface and no shadow.

 IP65 protection level, salt solution resistance,acids & alkalis and UV resistance.

 Excellent toughness, simple and stylish appearance, delicate and unique.

 3 years warranty, working life >30000 hours.



 Features:



 Votage:DC24V

 LED PIN temperature: Max 65 degree.

 Storage temperature: -25 to +60 degree

 LM-80 TESTED

 ONLY ONE BIN

 COLOR CONSISTENCY

 RA:90+

 3 Years Warranty.

 Length: 5M/roll

 IP protection: IP67

 OEM / ODM are welcomed.

 Available color in 2700K-6500K, Red, Green, Blue,Yellow, Orange, Pink, RGB,2700K+5500K



 Application area:



 Surrounding Lighting

 Auxiliary Lighting

 Theme Lighting

 Decorative lighting

 Outdoor lighting

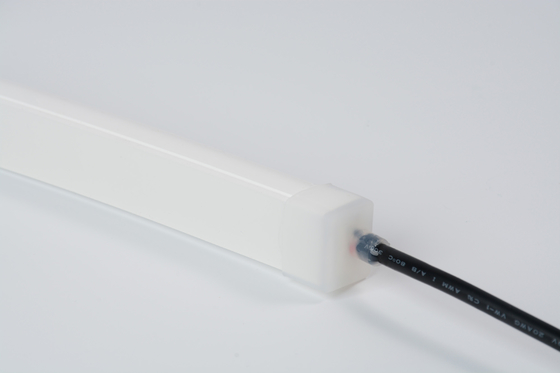

 Accessories:



LEDCORP® Neon Flex Side Bend Pro/CCT/RGB/Digital/DMX/360° with Simple and Stylish Appearance 2

LEDCORP® Neon Flex Side Bend Pro/CCT/RGB/Digital/DMX/360° with Simple and Stylish Appearance 3







 Packing details:



          Items

Packaging unit

meters per box

reels per box

Dimensions(mm) LxWxH

Gross weight(kg)

Volume(cbm)

IP66 / IP67  Neon Flex

Shipping carton box

150m

30reel

500*400*250

15

0.05



 Project Case:



LEDCORP® Neon Flex Side Bend Pro/CCT/RGB/Digital/DMX/360° with Simple and Stylish Appearance 4
