LEDCORP® Neon Flex Side Bend Pro/CCT/RGB/Digital/DMX/360° with Simple and Stylish Appearance
Place of Origin | CHINA |
---|---|
Brand Name | LEDCORP® |
Certification | ISO9001,CE,UL,TUV, RoHS |
Model Number | LC-S1225 |
Minimum Order Quantity | 250M/50Rolls |
Price | Negotiate according to order qty |
Packaging Details | 50x40x25CM |
Delivery Time | 15 working days |
Payment Terms | T/T , PayPal |
Supply Ability | 500,000mters per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xLuminous Surface | Side Bend | Cross Section | 12x25mm |
---|---|---|---|
Min Bending Diameter | 150mm | Voltage | 24V |
Waterproof | IP67 | Consistency | One Bin |
Protection | UV Protection | CRI | >90 |
Lifespan | >35000 Hrs | Warranty | 3 Years |
Storage Temperature | -25℃~60℃ | Shipping | 30 Rolls/CTN |
Part No. | Voltage | CRI/Ra | Cutting Length(mm) | Power(W/m) | CCT(K) | Lumen(lm/m) | Max Length(m) | |
---|---|---|---|---|---|---|---|---|
LC-S1225-W21 | DC24V | 90+ | 50mm | 10 | 2100K | 240 | 17M(CC) | |
LC-S1225-W24 | DC24V | 90+ | 50mm | 10 | 2400K | 270 | 17M(CC) | |
LC-S1225-W27 | DC24V | 90+ | 50mm | 10 | 2700K | 290 | 17M(CC) | |
LC-S1225-W30 | DC24V | 90+ | 50mm | 10 | 3000K | 290 | 17M(CC) | |
LC-S1225-W35 | DC24V | 90+ | 50mm | 10 | 3500K | 305 | 17M(CC) | |
LC-S1225-W40 | DC24V | 90+ | 50mm | 10 | 4000K | 320 | 17M(CC) | |
LC-S1225-W50 | DC24V | 90+ | 50mm | 10 | 5000K | 300 | 17M(CC) | |
LC-S1225-W65 | DC24V | 90+ | 50mm | 10 | 6500K | 315 | 17M(CC) | |
LC-S1225-R/G/B/Y/P | DC24V | 50mm | 10 | R/G/B/Y/P | 60-340 | 17M(CC) | ||
LC-S1225-CCT | DC24V | 90+ | 50mm | 10 | 3000K-6500K | 295 | 5M(CV) | |
LC-S1225-RGB | DC24V | 62.5mm | 10 | RGB | 135 | 5M(CV) | ||
LC-S1225-RGBW | DC24V | 80+ | 62.5mm | 10 | RGB+2700K/3000K/4000K/6500K | 160-185 | 5M(CV) |

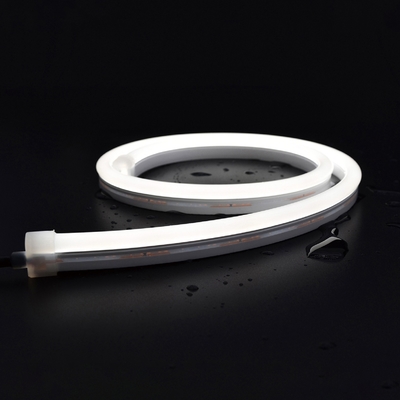

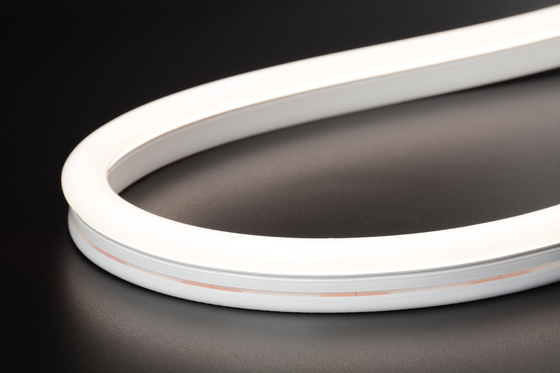

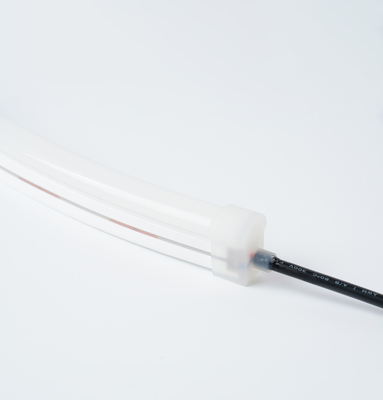

Product Picture:
Dimension:
Product advantages:
High light transmittance, environmental protection grade silicone material.
Integrated extrusion molding process.
Unique optial light distribution structure design.
Uniform lighting surface and no shadow.
IP65 protection level, salt solution resistance,acids & alkalis and UV resistance.
Excellent toughness, simple and stylish appearance, delicate and unique.
3 years warranty, working life >30000 hours.
Features:
Votage:DC24V
LED PIN temperature: Max 65 degree.
Storage temperature: -25 to +60 degree
LM-80 TESTED
ONLY ONE BIN
COLOR CONSISTENCY
RA:90+
3 Years Warranty.
Length: 5M/roll
IP protection: IP67
OEM / ODM are welcomed.
Available color in 2700K-6500K, Red, Green, Blue,Yellow, Orange, Pink, RGB,2700K+5500K
Application area:
Surrounding Lighting
Auxiliary Lighting
Theme Lighting
Decorative lighting
Outdoor lighting
Accessories:
Packing details:
Items |
Packaging unit |
meters per box |
reels per box |
Dimensions(mm) LxWxH |
Gross weight(kg) |
Volume(cbm) |
IP66 / IP67 Neon Flex |
Shipping carton box |
150m |
30reel |
500*400*250 |
15 |
0.05 |
Project Case:
