LEDCORP Side View COB Flex strip Hot 180-Degree Luminous Surface Beautiful Appearance Obvious Advantages

Place of Origin China
Brand Name LEDCORP
Certification ISO9001:2015, UL, CE, RoHS
Model Number LC480-COB-W/WW-24-SV
Minimum Order Quantity 250 meters
Price Negotiate according to quantity
Packaging Details 10kg / ctn ; 250 meters/ ctn
Delivery Time 5-15 working days
Payment Terms T/T , PayPal
Supply Ability 500,000 meters per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Led Qty 480Leds/m Power 10w/m
Emitting Side View CCT 3000k/4000k/6000k
View Angle 180° IP IP20/65/67/68
Work Temp -30°C - 60°C Lifespan >35000 Hrs
Warranty 3 Years Packing 5m/roll
You can tick the products you need and communicate with us in the message board.
Part No. Voltage (VDC) CRI/Ra Cutting Length(mm) Power(W/m) CCT(K) Lumen(lm/m) Width(mm)
LC480-COB-W27-24-SV 24V 90+ 33.33 10 2700K 500 8mm
LC480-COB-W30-24-SV 24V 90+ 33.33 10 3000K 550 8mm
LC480-COB-W40-24-SV 24V 90+ 33.33 10 4000K 600 8mm
LC480-COB-W50-24-SV 24V 90+ 33.33 10 5000K 700 8mm
LC480-COB-W65-24-SV 24V 90+ 33.33 10 6500K 700 8mm
Leave a Message
Part No. Voltage (VDC) CRI/Ra Cutting Length(mm) Power(W/m) CCT(K) Lumen(lm/m) Width(mm)
Product Description

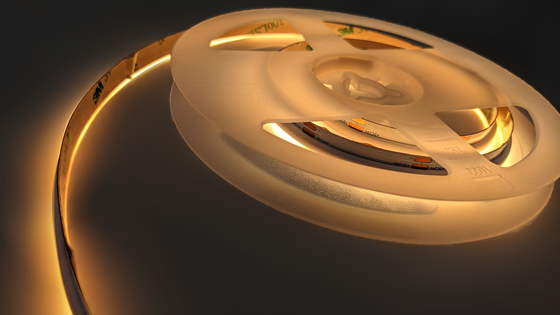

LEDCORP Side View COB Flex strip Hot 180-Degree Luminous Surface Beautiful Appearance Obvious Advantages 0

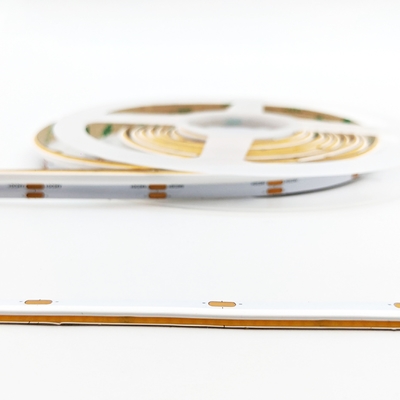

LEDCORP Side View COB Flex strip Hot 180-Degree Luminous Surface Beautiful Appearance Obvious Advantages 1

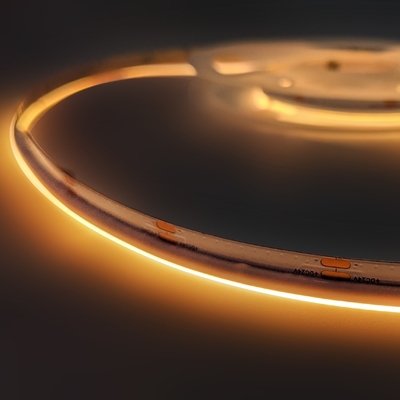

LEDCORP Side View COB Flex strip Hot 180-Degree Luminous Surface Beautiful Appearance Obvious Advantages 2



Product advantages:



  • High density, no light spot, beautiful appearance

  • 180-degree luminous surface, softer and more uniform

  • High luminous efficiency 100lm/w, high CRI90
  • Can be bent arbitrarily, easy to install
  • IP20/65/67 waterproof, widely used
  • The best light source for use with aluminum profiles
  • Obvious advantages and competitive prices



Application area:



Arts, Hotels, Shopping mall, Living room, Gym, Bar, Restaurant, Office, Building etc.




LEDCORP Side View COB Flex strip Hot 180-Degree Luminous Surface Beautiful Appearance Obvious Advantages 3
Installation:
LEDCORP Side View COB Flex strip Hot 180-Degree Luminous Surface Beautiful Appearance Obvious Advantages 4


Packing details:




          Items

Packaging unit

meters per box

reels per box

Dimensions(mm) LxWxH

Gross weight(kg)

Volume(cbm)

IP20 Strips

One Pack

5m

1reel

150*150*12

0.11

0.00027

Shipping carton box

500m

100reel

500*350*250

12

0.04375

IP65 / IP68 Strips

One Pack

5m

1reel

220*220*13

0.22

0.00063

Shipping carton box

250m

50reel

500*350*250

12

0.04375



LEDCORP Side View COB Flex strip Hot 180-Degree Luminous Surface Beautiful Appearance Obvious Advantages 5
Project Case:



LEDCORP Side View COB Flex strip Hot 180-Degree Luminous Surface Beautiful Appearance Obvious Advantages 6
