LEDCORP Custom Made 12w IP20/65/67 Waterproof COB Flex Strip Hot The Best Light Source for Aluminum Profiles

Place of Origin China
Brand Name LEDCORP
Certification ISO9001:2008, ISO9001:2015, UL, CE
Model Number LC504-COB-W/WW
Minimum Order Quantity 250 meters
Price Negotiate according to quantity
Packaging Details 10kg / ctn ; 250 meters/ ctn
Delivery Time 5-15 working days
Payment Terms T/T , PayPal
Supply Ability 500,000 mters per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Led Qty 504Leds/m Power 12w/m
Efficacy 100lm/m CCT 3000k/4000k/6000k
View Angle 180° IP IP20/65/67/68
Work Temp -30°C - 60°C Lifespan >35000 Hrs
Warranty 3 Years Packing 5m/roll
You can tick the products you need and communicate with us in the message board.
Part No. Voltage (VDC) CRI/Ra Cutting Length(mm) 12/24V Power(W/m) CCT(K) Lumen(lm/m) 12/24V Width(mm)
LC504-COB-W22-12/24 12/24V 90+ 17.86/41.67 12 2200K 528/720 10mm
LC504-COB-W27-12/24 12/24V 90+ 17.86/41.67 12 2700K 648/840 10mm
LC504-COB-W30-12/24 12/24V 90+ 17.86/41.67 12 3000K 684/900 10mm
LC504-COB-W40-12/24 12/24V 90+ 17.86/41.67 12 4000K 768/960 10mm
LC504-COB-W50-12/24 12/24V 90+ 17.86/41.67 12 5000K 816/1020 10mm
LC504-COB-W65-12/24 12/24V 90+ 17.86/41.67 12 6500K 816/1020 10mm
Leave a Message
Part No. Voltage (VDC) CRI/Ra Cutting Length(mm) 12/24V Power(W/m) CCT(K) Lumen(lm/m) 12/24V Width(mm)
Product Description

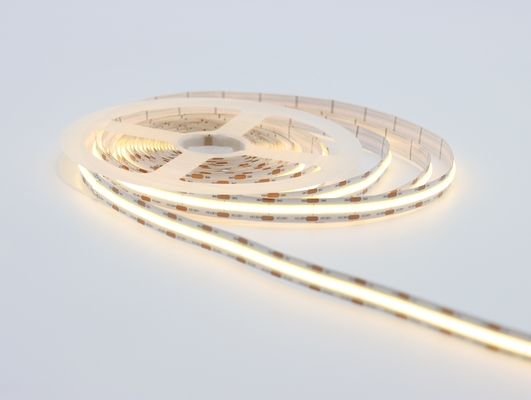

LEDCORP Custom Made 12w IP20/65/67 Waterproof COB Flex Strip Hot The Best Light Source for Aluminum Profiles 0

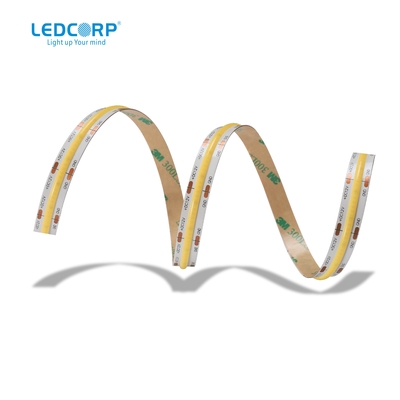

 LEDCORP Custom Made 12w IP20/65/67 Waterproof COB Flex Strip Hot The Best Light Source for Aluminum Profiles 1

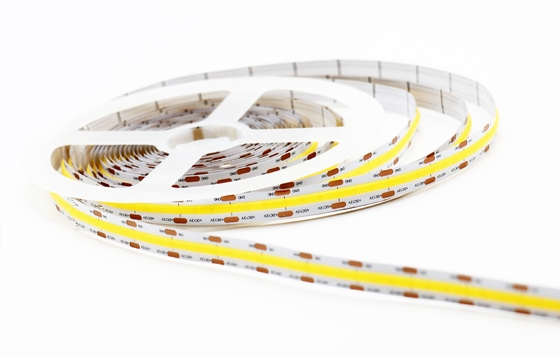

LEDCORP Custom Made 12w IP20/65/67 Waterproof COB Flex Strip Hot The Best Light Source for Aluminum Profiles 2











Product advantages:



  • High density, no light spot, beautiful appearance

  • 180-degree luminous surface, softer and more uniform

  • High luminous efficiency 100lm/w, high CRI90
  • Can be bent arbitrarily, easy to install
  • IP20/65/67 waterproof, widely used
  • The best light source for use with aluminum profiles
  • Obvious advantages and competitive prices



Application area:



Arts, Hotels, Shopping mall, Living room, Gym, Bar, Restaurant, Office, Building etc.




LEDCORP Custom Made 12w IP20/65/67 Waterproof COB Flex Strip Hot The Best Light Source for Aluminum Profiles 3
Installation:
LEDCORP Custom Made 12w IP20/65/67 Waterproof COB Flex Strip Hot The Best Light Source for Aluminum Profiles 4


Packing details:




          Items

Packaging unit

meters per box

reels per box

Dimensions(mm) LxWxH

Gross weight(kg)

Volume(cbm)

IP20 Strips

One Pack

5m

1reel

150*150*12

0.11

0.00027

Shipping carton box

500m

100reel

500*350*250

12

0.04375

IP65 / IP68 Strips

One Pack

5m

1reel

220*220*13

0.22

0.00063

Shipping carton box

250m

50reel

500*350*250

12

0.04375



LEDCORP Custom Made 12w IP20/65/67 Waterproof COB Flex Strip Hot The Best Light Source for Aluminum Profiles 5
Project Case:



LEDCORP Custom Made 12w IP20/65/67 Waterproof COB Flex Strip Hot The Best Light Source for Aluminum Profiles 6
