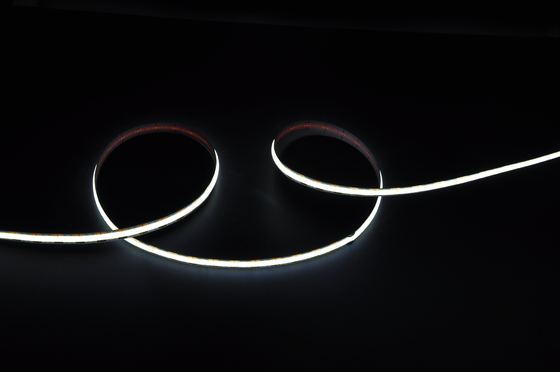

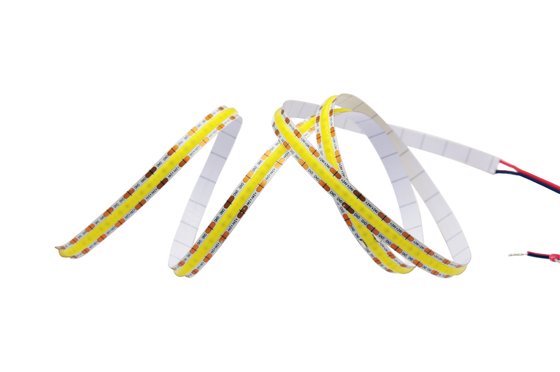

LEDCORP Mini Cut 11.36mm 24V COB Flex strip 5m one pack 250meters per box best lighting solution for your project case
Place of Origin | China |
---|---|
Brand Name | LEDCORP |
Certification | ISO9001:2015, UL, CE, RoHS |
Model Number | LC528-COB-W/WW-24-SC |
Minimum Order Quantity | 250 meters |
Price | Negotiate according to quantity |
Packaging Details | 10kg / ctn ; 250 meters/ ctn |
Delivery Time | 5-15 working days |
Payment Terms | T/T , PayPal |
Supply Ability | 500,000 mters per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xLed Qty | 528Leds/m | Power | 10w/m |
---|---|---|---|
Cutting Length | 11.36mm | CCT | 3000k/4000k/6000k |
View Angle | 180° | IP | IP20/65/67/68 |
Work Temp | -30°C - 60°C | Lifespan | >35000 Hrs |
Warranty | 3 Years | Packing | 5m/roll |
Part No. | Voltage (VDC) | CRI/Ra | Cutting Length(mm) | Power(W/m) | CCT(K) | Lumen(lm/m) | Width(mm) | |
---|---|---|---|---|---|---|---|---|
LC528-COB-W22-24-SC | 24V | 90+ | 11.36 | 10 | 2200K | 500 | 8mm | |
LC528-COB-W27-24-SC | 24V | 90+ | 11.36 | 10 | 2700K | 610 | 8mm | |
LC528-COB-W30-24-SC | 24V | 90+ | 11.36 | 10 | 3000K | 640 | 8mm | |
LC528-COB-W40-24-SC | 24V | 90+ | 11.36 | 10 | 4000K | 720 | 8mm | |
LC528-COB-W50-24-SC | 24V | 90+ | 11.36 | 10 | 5000K | 760 | 8mm | |
LC528-COB-W65-24-SC | 24V | 90+ | 11.36 | 10 | 6500K | 760 | 8mm |
Product advantages:
-
High density, no light spot, beautiful appearance
-
180-degree luminous surface, softer and more uniform
- High luminous efficiency 100lm/w, high CRI90
- Can be bent arbitrarily, easy to install
- IP20/65/67 waterproof, widely used
- The best light source for use with aluminum profiles
- Obvious advantages and competitive prices
Application area:
Arts, Hotels, Shopping mall, Living room, Gym, Bar, Restaurant, Office, Building etc.
Installation:
Packing details:
Items |
Packaging unit |
meters per box |
reels per box |
Dimensions(mm) LxWxH |
Gross weight(kg) |
Volume(cbm) |
IP20 Strips |
One Pack |
5m |
1reel |
150*150*12 |
0.11 |
0.00027 |
Shipping carton box |
500m |
100reel |
500*350*250 |
12 |
0.04375 |
|
IP65 / IP68 Strips |
One Pack |
5m |
1reel |
220*220*13 |
0.22 |
0.00063 |
Shipping carton box |
250m |
50reel |
500*350*250 |
12 |
0.04375 |
Project Case:
