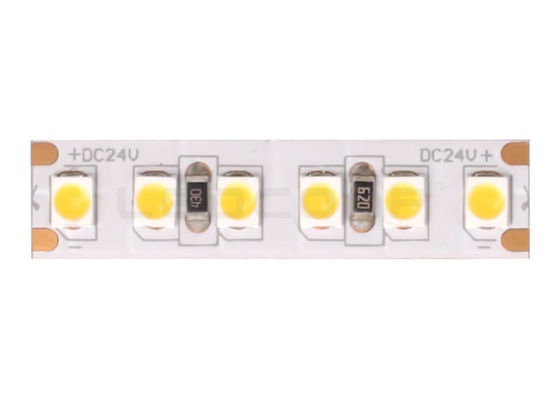

High power Super bright 2835 240LEDs SMD High Lumen LED Strip Lighting 57.6w/m UL CE ROHS 3M tape

High power Super bright 2835 240LEDs SMD High Lumen LED Strip Lighting 57.6w/m UL CE ROHS 3M tape

    • High power Super bright 2835 240LEDs SMD High Lumen LED Strip Lighting 57.6w/m UL CE ROHS 3M tape
    • High power Super bright 2835 240LEDs SMD High Lumen LED Strip Lighting 57.6w/m UL CE ROHS 3M tape
    • High power Super bright 2835 240LEDs SMD High Lumen LED Strip Lighting 57.6w/m UL CE ROHS 3M tape
    • High power Super bright 2835 240LEDs SMD High Lumen LED Strip Lighting 57.6w/m UL CE ROHS 3M tape
  • High power Super bright 2835 240LEDs SMD High Lumen LED Strip Lighting 57.6w/m UL CE ROHS 3M tape

    Product Details:

    Place of Origin: CHINA
    Brand Name: LEDCORP
    Certification: ISO9001:2008, ISO9001:2015
    Model Number: LC240-N2835-W

    Payment & Shipping Terms:

    Minimum Order Quantity: 250M
    Price: Welcome to your inquiry
    Packaging Details: 11kg/ctn
    Delivery Time: 15 days
    Payment Terms: T/T,PayPal
    Supply Ability: 500,000m per month
    Contact Now
    Detailed Product Description
    Led: 2835 Qty/m: 240 LEDs
    IP: IP20 Ra: 80-90
    Voltage: 24V Chip: Epistar/SanAn
    CCT: 2700-6500K Warranty: 3-5 Years
    Power: 57.6w/m PCB: 12mm
    Angle: 120° Temp: -30°C - 60°C
    Lifetime: >35000hours Weight: 0.1kg/roll
    Packing: 5m/roll Shipping: 100rolls/ctn
    Lumen/m: 5068 Lm - 5472 Lm Brightness: 90-100lm/w

    57.6w/m 2835 High Lumen LED Strip Lighting 240 LEDs/m   High power Super bright 2835 240LEDs SMD High Lumen LED Strip Lighting 57.6w/m UL CE ROHS 3M tape  2835 240 High.pdf

    High power Super bright 2835 240LEDs SMD High Lumen LED Strip Lighting 57.6w/m UL CE ROHS 3M tape

    High power Super bright 2835 240LEDs SMD High Lumen LED Strip Lighting 57.6w/m UL CE ROHS 3M tape





    Product advantages:

    • Color Consistency, only one bin
    • High Efficacy, 90-165lm/w
    • High CRI, 80+,90+,95+
    • Color purity: we use quality chip, phosphor golden wires and copper holder, make the SDCM<4
    • Long Lifespan: >35000 Hrs
    • No dark and uninterrupted Led strip
    • High brightness, low decay, low power consumption, LM-80 Tested
    • Be able to give soul space, and increase the dynamics of the space, making the space brighter.



    Features:

    • High brightness, low decay, stable quality,
    • PCB color: white, brown, black, customized logo on PCB is available
    • DC12V strips can ben cust every 3 SMDs, DC24 strips can be cut every 6 LEDs
    • Warm white: 2400K / 2700K - 3000K,
    • Natural white: 4000K - 4500K,
    • White: 5000K - 5500K / 6000K - 6500K
    • Different connectors are easy for you to connect the cut parts
    • 3M adhersive tape
    • OEM / ODM are welcomed.
    • Available in IP20, IP44, IP65, IP67, IP68 rating and nano series



    Technical details:



    Details

    Item

    Unit

    Specification

    Physical data

    LED type

    SMD

    2835SMD

    LED Qty /meter

    LED/m

    240

    Dimensions

    mm

    12*2.2*5000 (W*H*L)

    Type of protection

    IP

    IP20 / IP65 / IP66 / IP67 / IP68

    Working temperature

    °C

    -30°C - 60°C

    Electrical data

    Power

    w/m

    57.6w

    Voltage

    VDC

    24V

    Optical data

    Luminous flux

    lm/m

    5068 - 5472

    Beam angle

    degrees

    120

    Light color



    Warm white/Natural white/White

    Color BINs



    1 BIN

    Color temperature

    K

    Warm white:2400 / 2700-3000

    Natural white :4000-4500

    White: 5000-5500 / 6000-6500

    Color rendering index

    CRI

    80-90

    Order reference

    HS code

    94054090

    Part. no

    LC240-N2835-w/ww/nw-IP20-12/24

    LC240-W2835-w/ww/nw-IP65-12/24

    LC240-W2835-w/ww/nw-IP68-12/24

    High power Super bright 2835 240LEDs SMD High Lumen LED Strip Lighting 57.6w/m UL CE ROHS 3M tapeHigh power Super bright 2835 240LEDs SMD High Lumen LED Strip Lighting 57.6w/m UL CE ROHS 3M tape

    High power Super bright 2835 240LEDs SMD High Lumen LED Strip Lighting 57.6w/m UL CE ROHS 3M tape

    High power Super bright 2835 240LEDs SMD High Lumen LED Strip Lighting 57.6w/m UL CE ROHS 3M tape

    High power Super bright 2835 240LEDs SMD High Lumen LED Strip Lighting 57.6w/m UL CE ROHS 3M tape

    High power Super bright 2835 240LEDs SMD High Lumen LED Strip Lighting 57.6w/m UL CE ROHS 3M tape

    Installation:

    High power Super bright 2835 240LEDs SMD High Lumen LED Strip Lighting 57.6w/m UL CE ROHS 3M tape





    Packing details:



              Items

    Packaging unit

    meters per box

    reels per box

    Dimensions(mm) LxWxH

    Gross weight(kg)

    Volume(cbm)

    IP20 Strips

    One Pack

    5m

    1reel

    150*150*12

    0.11

    0.00027

    Shipping  box

    500m

    100reel

    500*350*250

    12

    0.04375

    IP65 / IP68 Strips

    One Pack

    5m

    1reel

    220*220*13

    0.22

    0.00063

    Shipping  box

    250m

    50reel

    500*350*250

    12

    0.04375





    High power Super bright 2835 240LEDs SMD High Lumen LED Strip Lighting 57.6w/m UL CE ROHS 3M tape





    High power Super bright 2835 240LEDs SMD High Lumen LED Strip Lighting 57.6w/m UL CE ROHS 3M tape





    High power Super bright 2835 240LEDs SMD High Lumen LED Strip Lighting 57.6w/m UL CE ROHS 3M tape
