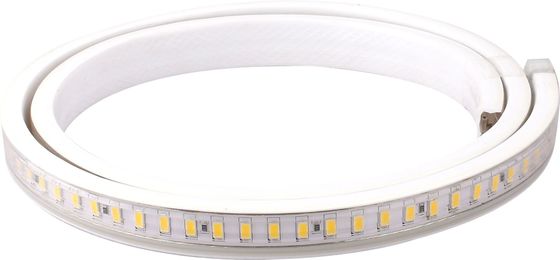

5730 120 LEDs House High Voltage LED Strip Lighting , Decorative Strip Light 14W / M

5730 120 LEDs House High Voltage LED Strip Lighting , Decorative Strip Light 14W / M

5730 120 LEDs House High Voltage LED Strip Lighting , Decorative Strip Light 14W / M

Product Details:

Place of Origin: China
Brand Name: LEDCORP
Certification: ISO9001 , CE , RoHS
Model Number: LC120-HV5730-WW/NW/W-110/220

Payment & Shipping Terms:

Minimum Order Quantity: 50meters/roll
Price: Negotiation
Packaging Details: 100meters / carton
Delivery Time: 15-20 working days
Payment Terms: T/T , PayPal
Supply Ability: 100,000meters per month
Contact Now
Detailed Product Description
LED: 5730 Qty/m: 120 LEDs/m
Voltage: 110V/220V Power: 14 W/m
CCT: 2700-6500K Packing: 50 M/roll
CRI: 80 Efficacy: 80 Lm/w
Angle: 120° Dimension: 18mm*50000mm*8mm
Weight: 7 Kg/roll Warranty: 2 Yrs

5730 High Voltage LED Decorative Strip 14w/m                       5730 120 LEDs House High Voltage LED Strip Lighting , Decorative Strip Light 14W / M  5730 120 HV.pdf







5730 120 LEDs House High Voltage LED Strip Lighting , Decorative Strip Light 14W / M















Product features:

  • 5730SMD Epistar Chip Light source
  • High voltage version, directly connect 110v/220v, no need led power supply
  • High brightness, low decay, stable quality, long lifespan
  • Easy to use and install, 50m/reel, IP67 protection, install with clips or glues
  • Non-dimmable, 4 BINS, 2700-6500K


Application area:

  • Cove lighting using For  AC110-220V
  • Architectural lights
  • Backlight or edge lighting for signage
  • DIY lights for home use
  • Path and contour marking
  • Decorative lights for holiday, event, show, exhibition, hotel


Dimension:
5730 120 LEDs House High Voltage LED Strip Lighting , Decorative Strip Light 14W / M
IP rating: IP67


Technical details:


Details

Item

Unit

Specification

Physical data

LED type

SMD

5730SMD

LED Qty /meter

LED/m

120

Dimensions

mm

18mm*50000mm*8mm

Type of protection

IP

IP67

Working temperature

°C

0-40°C

Electrical data

Power

W/m

14W / m

Voltage

VDC

110VAC / 220VAC

Optical data

Luminous flux

LM/m

1835LM / m

Beam angle

degrees

120

Light color



Warm white / Natural white / Cool White / Red / Yellow / Green / Blue

Color BINs



5 BINs

Color temperature

K

WW : 2700 - 3000K

NW : 4000 - 4500K

CW : 6000 - 6500K

Color rendering index

CRI

70-90

Order reference

HS code

94054090

Part. no

LC120-HV5730-W-110/220

LC120-HV5730-WW-110/220

LC120-HV5730-NW-110/220



Installation details:


5730 120 LEDs House High Voltage LED Strip Lighting , Decorative Strip Light 14W / M


5730 120 LEDs House High Voltage LED Strip Lighting , Decorative Strip Light 14W / M


Packing details:


Items

HS code

Packaging unit

meters per box

reels per box

Dimensions(mm) LxWxH

Gross weight

Volume(cbm)

   HV Led Strip

94054090

Shipping carton box

100m

2reels

500*350*250

12kg

0.04375


5730 120 LEDs House High Voltage LED Strip Lighting , Decorative Strip Light 14W / M

5730 120 LEDs House High Voltage LED Strip Lighting , Decorative Strip Light 14W / M

5730 120 LEDs House High Voltage LED Strip Lighting , Decorative Strip Light 14W / M

5730 120 LEDs House High Voltage LED Strip Lighting , Decorative Strip Light 14W / M

5730 120 LEDs House High Voltage LED Strip Lighting , Decorative Strip Light 14W / M
